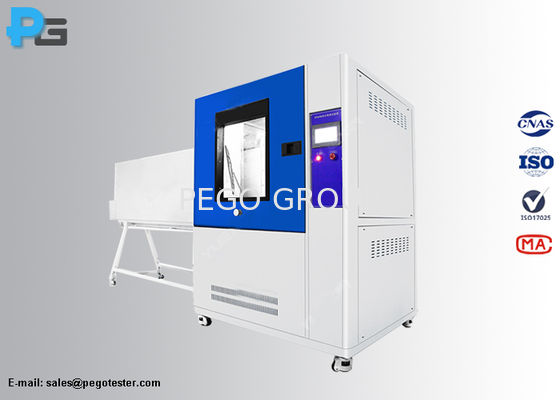

High Pressure Jetproof Thermal Test Chamber IEC60529 ISO20653 For IPX5 IPX6 IPX9K
IEC60529 / ISO20653 High Temperature High Pressure Jetproof Test Chamber for IPX5 IPX6 IPX9K
Introduction
The IPX69K High Temperature High Pressure Jet Spray Test Chamber is designed according to IEC60529, DIN40050-9 figure 7 and ISO20653 figure 8 and 9 standards. This equipment performs IPX5, IPX6, IPX6K and IPX9K testing with user-defined parameters via a 7-inch LCD touch screen and PLC (Panasonic) auto-control system. Constructed with stainless steel nozzles, turntable, and inner box, it includes a built-in waterproof socket for live testing. Ideal for electrical equipment in road vehicles, motors, electric components, and auto parts waterproof testing, it enables performance evaluation and product improvement.
IPX5 Water Jets
Water projected by a nozzle (6.3 mm) against enclosure from any direction shall have no harmful effects. Test duration: at least 15 minutes, volume: 12.5 litres per minute, pressure 30 kPa at distance of 3 m.
IPX6 Powerful Water Jets
Water projected in powerful jets (12.5 mm nozzle) against the enclosure from any direction shall have no harmful effects. Test duration: at least 3 minutes, volume: 100 litres per minute, pressure 100 kPa at distance of 3 m.
IPX6-K Powerful Water Jets with Increased Pressure
Water projected in powerful jets (12.5 mm nozzle) against the enclosure from any direction, under elevated pressure, shall have no harmful effects. Test duration: at least 3 minutes, Water volume: 75 litres per minute, Pressure: 1000 kPa at distance of 3 m.
IPX9K High Pressure/Steam Water Jets Cleaning
Water projected in high pressure high temperature against the enclosure from 4 directions (00, 300, 600, 900) shall have no harmful effects. Test duration: 30s per direction, water volume: 14~16 litres per minute, pressure: 8000~10000 Kpa, temperature: 80±5℃, test distance: 100 to 150mm.
Features
- High-quality steel plate, coating with stoving varnish.
- The chamber inner and support are made by SUS304# stainless steel.
- 7-inch touch screen and PLC core control component for easy operation and auto control.
- High-quality stepping motor with adjustable speed and angle via touch screen.
- IPD temperature control with touch screen settings.
- Test time: 0-999min adjustment, auto stop.
- Comprehensive protection: leakage, water shortage, overflow, short circuit, and door induction protection.
- Built-in water tank with recycling capability, ball valve control, and low water level alarm.
- Transparent observation window with tempered glass and LED light for test monitoring.
Specifications
| Model |
IPX69K |
| Working dimension (mm) |
1200*1200*1200 (L*W*H) |
| Outer dimension (mm) |
4200*1380*2050 (L*W*H) |
| IPX5 nozzle diameter |
Φ6.3mm |
| IPX6 nozzle diameter |
Φ12.5mm |
| Test distance for IPX5/6 |
2.8m (distance from nozzles to turntable center) |
| Nozzle fixing method |
Mechanical fixation (auto or Programmable nozzle gun angle adjustable) |
| Number of nozzles for IPX9K |
4 |
| Nozzles position |
00, 300, 600, 900 (vertical distribution) |
| Test distance for IPX9K |
100~200mm (adjustable) |
| Test time |
30s per position |
| Bear weight |
50kg |
| Test time |
0~9999s (presettable) |
| Diameter of turntable |
Φ600mm |
| Turntable lifting mode |
Manual adjustable |
| Flow rate of IPX5 |
12.5±0.625 (L/min) |
| Flow rate of IPX6 |
100±5 (L/min) |
| Temperature of IPX9K |
RT. Or 80±5℃ |
| Water pressure of IPX9K |
8000-10000Kpa |
| Turn speed of turntable |
4-10r/min (adjustable) |
| Working power |
380v/50Hz, 15KW |
| EUT power |
220V |
| Protection |
Leakage protection, water shortage protection, short circuit protection, induction protection |
